it is designed for portable charging, flexible and many battery types. can detectThe battery type and charge thebattery automatically under the charge you choosebuilt-in LED display with charging status and 5 V / 100 mAh USB output function

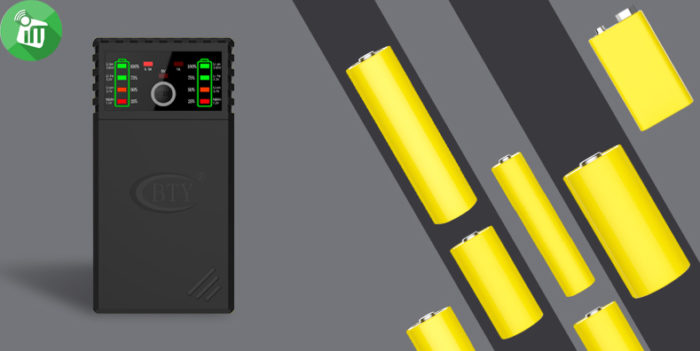

This charger can only charge cylindrical lithium-ion battery (3.7V, 3.8V) , NiMH / NiCd, LiFePO4 battery, 9V (6F22) lithium battery / NiMH battery
Before using this product , please read the instruction manual , pay attention to the recommended charging current of the rechargeable battery, do not charge more than the recommended current
Charging with USB 5V adapter (adapter current recommendation 2A)
Charger may be used in the charge and discharge heat , be careful not to burn
To stop using , unplug the power and remove the battery
Can only be used in normal indoor
This product test data for reference only, the actual situation, please refer to professional equipment
Button, LED and function description
Button: In case of power on, press and hold the SELECT button for 2 seconds at any time to switch the 500mA 1000mA charging current; when the battery is charged, press the SELECT button to change the rechargeable battery type. When the selected rechargeable battery type is selected 3.20V 3.85V) 5 seconds into the charge state.
LED light shows the state : the charger connected to 5V power supply, the charger all the LED instantly bright, if the battery is not placed in the charging slot, 500mA (LED) indicator light, the other lights go out;
When the battery is detected, the 4 LEDs are all on and the 3.7V LED will flash . At this time, you can press the button to select the type of battery to be charged. If you do not choose, the default battery will be charged after 5 seconds. Charging indicator according to the corresponding charge ratio flashing. Tap the button to check the charging type (without power indicator) 5 seconds to return to the charging status. When not powered, the battery can be checked to see the charge ratio (5 seconds off, need to see press again)

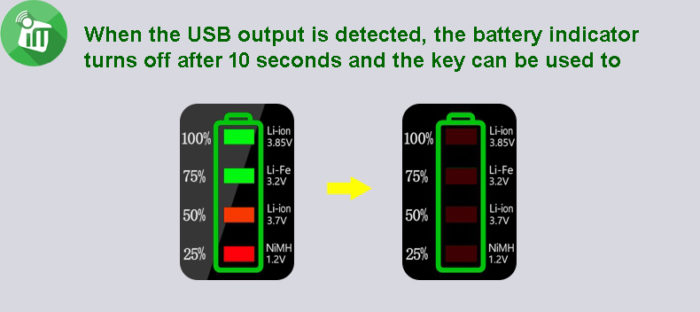

USB output indication: When the USB output is detected, the power indicator light turns off after 10 seconds, press the key to view the power.
Charger requirements and features :

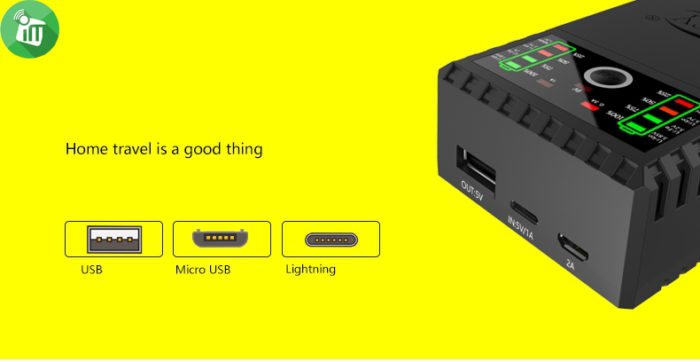

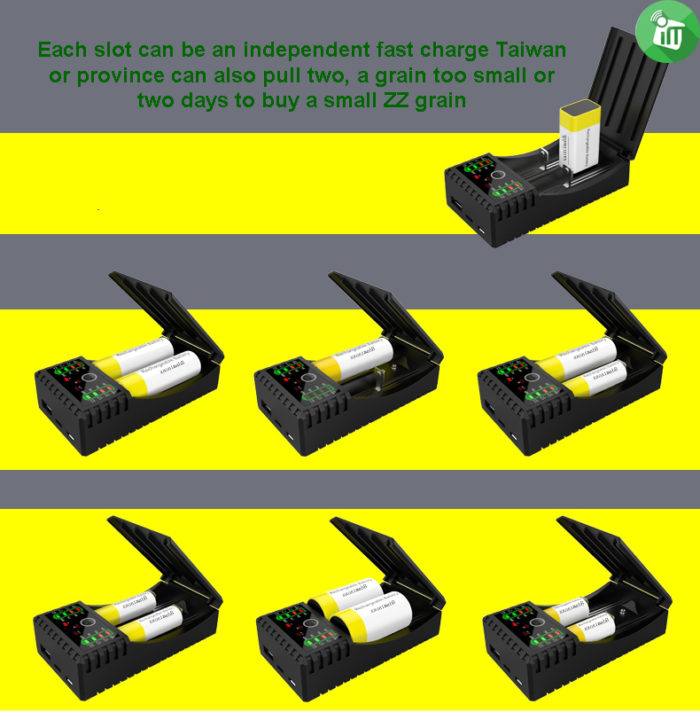

Support 2 various interface inputs: Apple ( Lightning ) interfaces, Micro the USB 5V the DC input, and two slots separate charging management system microcomputer
Available for 2 charge current selection (500mA / 1000mA) , 9V (6F22) 50mA

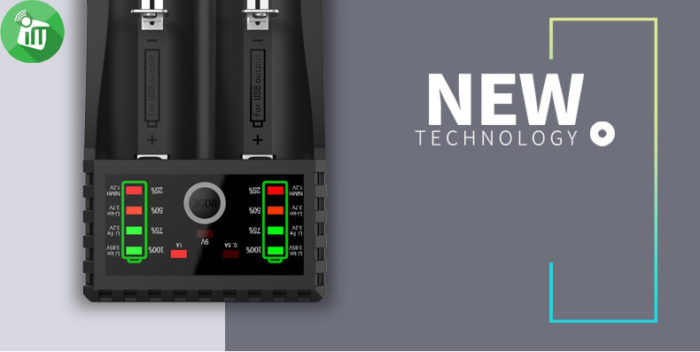

LED Display Charge Status 25% 50% 75% 100% and Battery Type NiMH 1.2V Li-Fe 3.2V Li-ion 3.7V Li-ion 3.85V
9V (6F22) charging LED lights, full of lights off
It can automatically identify Li-ion battery and Ni-MH battery, manually select Liepo4 and Li-ion3.85V battery , 9V (6F22) Li- ion battery and NiMH battery
There 0V voltage activation, 1.65-1.85V can not be charged (but there will be an active current trickle charge).
Have over-discharge, short circuit, smart identification of bad batteries and reverse battery detection and protection.
Charging mode, constant current and constant voltage
Using a DC input, the charger as the power supply 1.5A-5V (the Apple interface), 5V. 2A-(Micro insertion port )

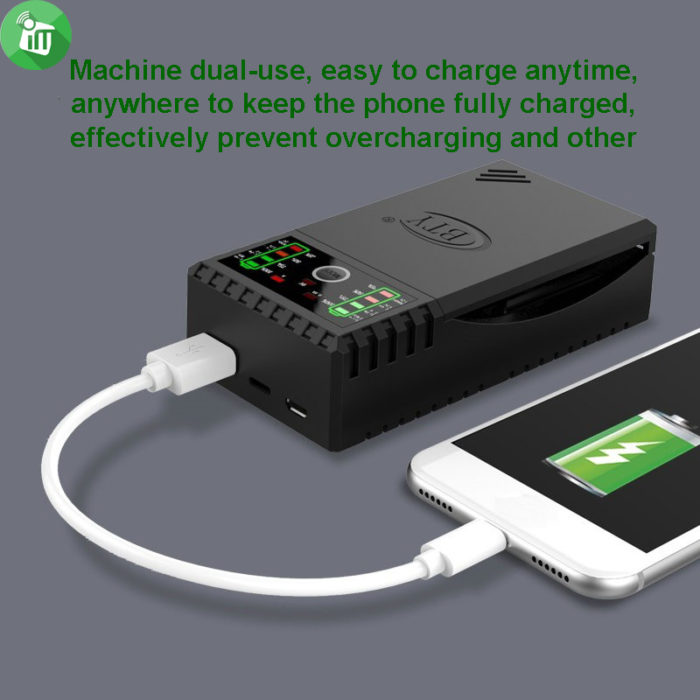

With standard 5V / 1000mA USB automatic identification output
Input power: Apple ( Lightning ) 5V / 1.5A , Micro the USB 5V the DC /. 2A
