D-Link 8-Port PoE Gigabit Smart Managed Switch (DGS-F1100-10PS-E)

D-Link
Availability:

2 in stock


incase of installments will the official price

  • 6KV Lightning protection
  • Support WEB GUI Management
  • Smart Features Extend, VLAN, QoS, and PoE
  • 8 10/100/1000 Mbps Ethernet ports
  • 2 SFP Uplink, 96W PoE budget
  • Support IEEE802.3af/at up to 30W per port to PoE-compatible devices
  • Support transmission Data/PoE up to 250m cable length (Port 1-8 with Extend enabled)

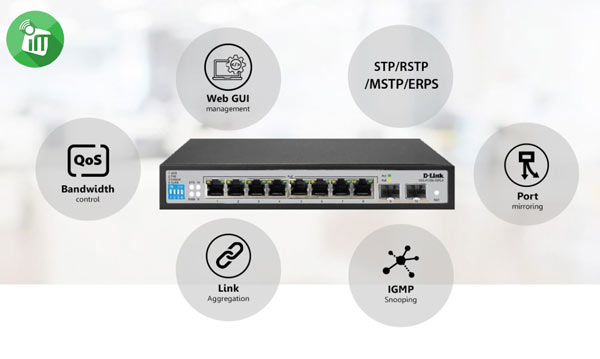

  • Advanced Features: Port Mirroring, Link Aggregation, Bandwidth Control, STP/RSTP/MSTP
SKU: 790169004406 Category: Tags: , , , , , , , Brand:

5,399 EGP 6,155 EGP

2 in stock

TP-Link 8-Port PoE Gigabit Smart Managed Switch (DGS-F1100-10PS-E)

Overview

Built for your Need

Robust and cost-effective Smart PoE solution to provide power for your PoE-powered devices such as IP cameras, CCTV, VoIP, AP etc

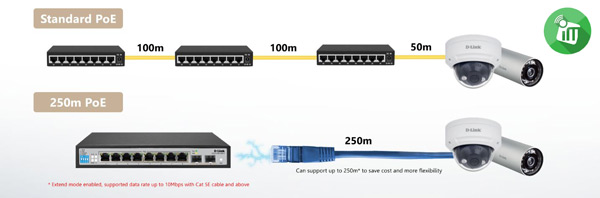

Up to 250m PoE and Data Transmission

Equipped with PoE extend technology, DGS-F1100-10PS-E can supply 802.3af/at PoE up to 250m with data transmission. Cost saving for long-distance solution

6KV Surge Protection

D-Link 250M is enhanced with 6KV surge protection to effectively guard equipment against lighting damage especially if use on an AP/IP camera install outdoors or at a higher position

Enhanced with VLAN Function

With a flick of a button, Isolate the downlink ports to each other can effectively suppress network storms and improve network performance

Enhanced with Video QoS

Improve the Video Packet Priority Create high priority for video streaming, the perfect solution for IP camera/CCTV

Long Distance Fiber Optic Connection

Equipped with SFP slot, DGS-F1100-10PS-E works with D-Link Transceiver* for data communication applications over fiber optic for long distance solution

High Performance

The rack-mount size steel case design, combined with a safety-certified internal power supply, make the switch the most robust product, which is very cost-effective for a less than 16-user environment. Featuring non-blocking switching architecture

Easy to Use

D-Link 8-Port PoE  The auto features of this fast ethernet switch make installation plug-and-play and hassle-free. No configuring is required. AAuto-negotiation on each port senses the link speed of a network device and intelligently adjusts for compatibility and optimal performance.

Features :

  1. 6KV Lightning protection
  2. Support WEB GUI Management
  3. Smart Features Extend, VLAN, QoS, and PoE
  4. 8 10/100/1000 Mbps Ethernet ports
  5. 2 SFP Uplink, 96W PoE budget
  6. Support IEEE802.3af/at up to 30W per port to PoE-compatible devices
  7. Support transmission Data/PoE up to 250m cable length (Port 1-8 with Extend enabled)
  8. Advanced Features: Port Mirroring, Link Aggregation, Bandwidth Control, STP/RSTP/MSTP
SKU: 790169004406 Category: Tags: , , , , , , , Brand:
Brands

Color

Special Filters

, ,

Interfaces 8 x 10/100/1000BASE-T
2 x 100/1000 Mbps SFP ports
Port Standards • IEEE 802.3: Ethernet Media Access Control (MAC) protocol IEEE 802.3i:10BASE-T Ethernet
• IEEE 802.3u:100BASE-TX fast Ethernet IEEE 802.3ab:1000BASE-T gigabit Ethernet
• IEEE 802.3z:1000BASE-X gigabit Ethernet fiber) IEEE 802.3ad: comply link aggregation standard IEEE 802.3x: flow control
• IEEE 802.1p: About the traffic priority of the second layer of QoS / Cos protocol (multicast filtering)
• IEEE 802.1q: VLAN Bridge operation IEEE 802.1d:STP spanning tree IEEE 802.1s: MSTP spanning tree
• IEEE 802.1w: RSTP spanning tree
PoE Standards IEEE 802.3af/at
PoE Capable Ports Port 1 8 can support up to 250 m @10 Mbps with Extend Enable
Power Budget 96W (30W max. per port)
From Port Specifies the start port in the range for Uplink Ports. These are used for connecting the surveillance VLAN with other switches.
To Port Specifies the end port in the range for Uplink Ports. These are used for connecting the surveillance VLAN with other switches
Network Cables  UTP Cat. 5, Cat. 5e (100 m max.)
Duplex Mode • Full/Half-duplex for 10/100 Mbps
• Full duplex for 1000 Mbps
Switching Capacity 20 Gbps
Transmission Method Store-and-forward
MAC Address Table 8K entries
